Log Home Plan.JPG

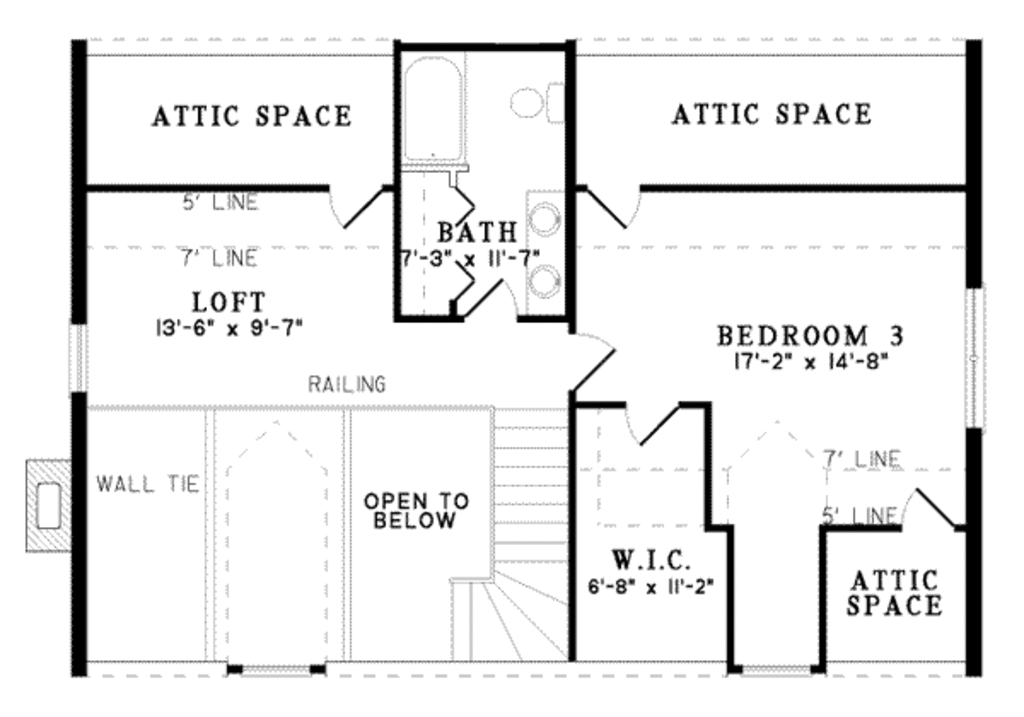

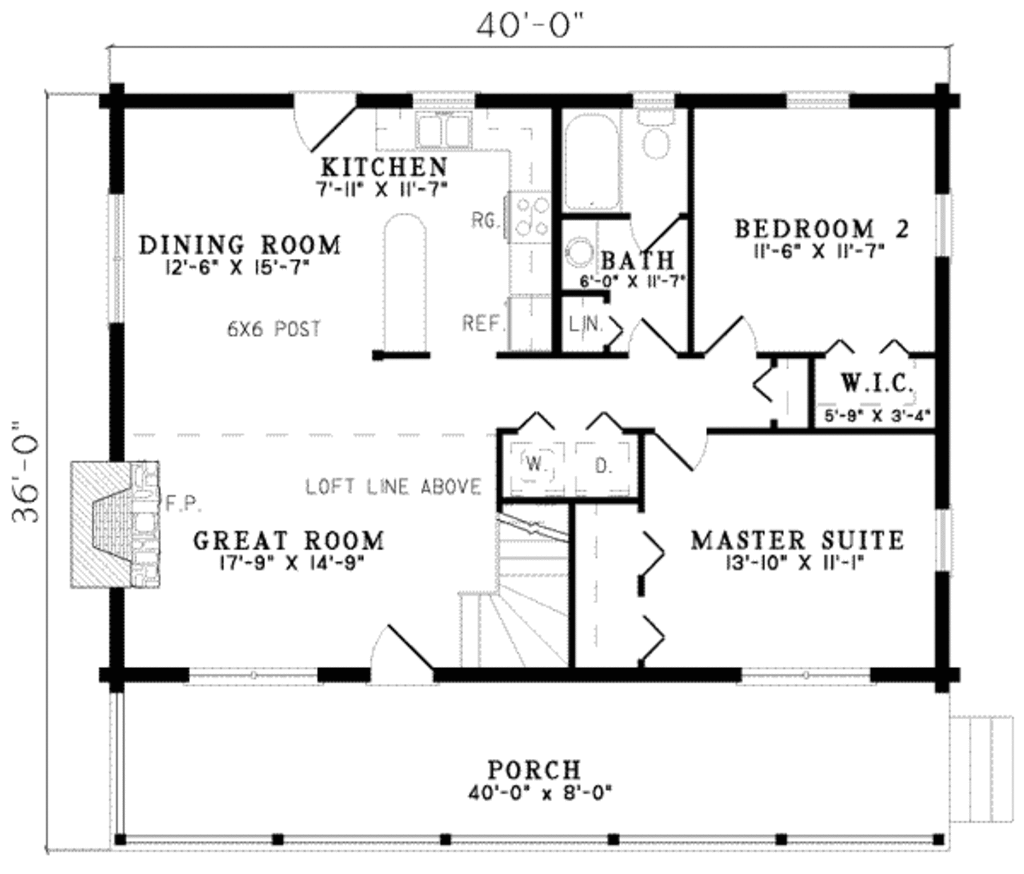

log home plan from houseplans.com
log home plan from houseplans.com
HOUSE FEATURES

WALK IN CLOSET

MAIN FLOOR MASTER BEDROOM

GREAT ROOM LIVING ROOM

LOFT BALCONY

SUITED FOR NARROW LOT

STORAGE AREA

UPSTAIRS MASTER BEDROOMS

STORAGE AREAS

COVERED FRONT PORCH

SUITED FOR VACATION HOME

SUITED FOR VIEW LOT

GREAT ROOM LIVING ROOM

SPECIFICATIONS

MAIN FLOOR 1120 SQ FT

UPPER FLOOR 605 SQ FT

DEPTH 36'

WIDTH 40'

We supply all the wood material to build this cabin minus the first-floor subfloor floor joist and studs for interior walls. Read below to see what's included.

​

2100 LF 6X8 D-LOGS

5 BOX 11" LOG BOSS SCREWS

3 BOX GASKET

4 BOX CAULKING

1300 LF D-LOG SIDING GABLE ENDS AND DORMERS

32 4X10X24' (RAFTERS)

2 6X12X24 (RIDGE BEAMS)

4 8" ROUND POST

16" (RIDGE SUPPORT)

60 7 1/2" OSB INSULATION PANELS 4X8 R-30

4600 LF 2X6 T&G (ROOF)

16 4X10X16 (COLLAR TIES)

20 4X8X20 (2ND FLOOR BEAMS)

2600 LF 2X6 T&G (2ND FLOOR T&G)

1 6X12X24 (LOFT CORNER BEAM)

3 SECTIONS LOFT RAILS

3 SECTIONS STAIR RAILS

4500 LF 1X8 T&G (INTERIOR WALLS)

1000 LF 1X6 S4S

16 4X8X12 (PORCH RAFTERS)

1200 LF 1X6 T&G (PORCH ROOF)

6 8" ROUND PORCH POST

4 6X8X16 (PORCH CORNER BEAMS)

6 SECTION PORCH RAIL

​

Includes siding for gable ends and dormers, roof rafters and collar ties, roof ridge and supports, roof t&g and insulation panels, 2nd-floor beams and subfloor loft railing, interior t&g and trim, porch rafters t&g, and railing



Does NOT include 1st-floor subfloor and floor joist windows or doors insulation/wiring/plumbing metal roof interior stud wall material lighting or bathroom fixtures heat/air
